We have developed a new tool allowing to drill over 45'000 holes of excellent quality in stainless steel 410. In order to achieve this result, Louis Belet’s R&D team completely revised the design of the tool. Drill material, geometrics, coating and cutting parameters were all optimized. This new stainless steel drill of the EXPERT series produces holes that are more precise, cleaner and present les burrs. Moreover, thanks to an integrated chip-breaker, chips will no longer roll around the clamping system or scratch the work piece.
 |
 |
|
Application field: |
Medical devices |
|
Operation : |
- Drilling of orthopedic shaver blades for arthroscopic surgery - Material: stainless steel 410 |
|
Results : |

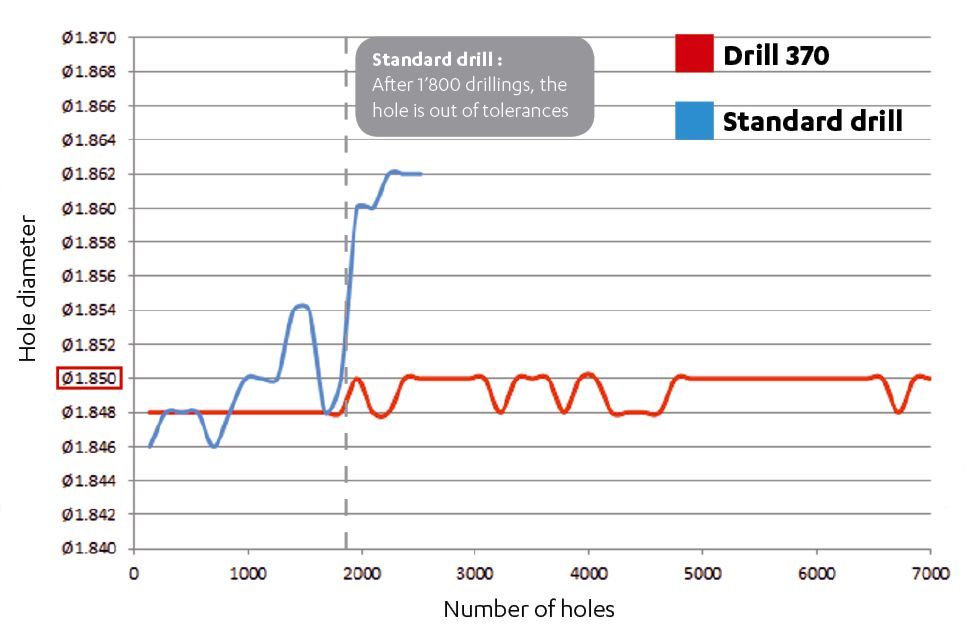

- 45'000 compliant holes drilled with one tool - The drill 370 EXPERT Series is 9 times more performant than the reference tool. |
|
Customer's feedback : |
 |
«I was getting around 5'000 pieces per drill using a competitor tool. I have been amazed by the performance of the Louis Belet 370 drill !» |
Cutting conditions :
| Vc = | 30 m/min |
| f = | 0.04 mm |
| n = | 5164 /min |
| Vf = | 200 mm/min |
| Peck drilling = | 0.37 mm |
| Cutting oil | |

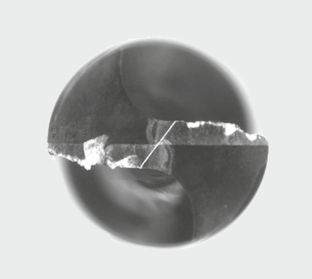

End of life criteria
| - Broken tool | |
| - Ø out of tolerances : ±0.01 mm | |
| - Conical hole max 0.01 | |
| - Excessive burr | |
| - Hole location : ±0.01 mm |

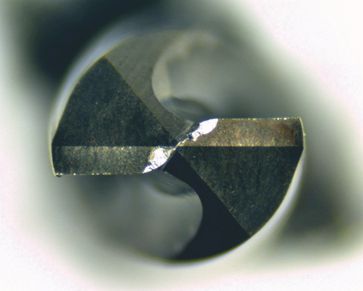

Drilling with ref. 370
- Less burrs
- Holes more accurate

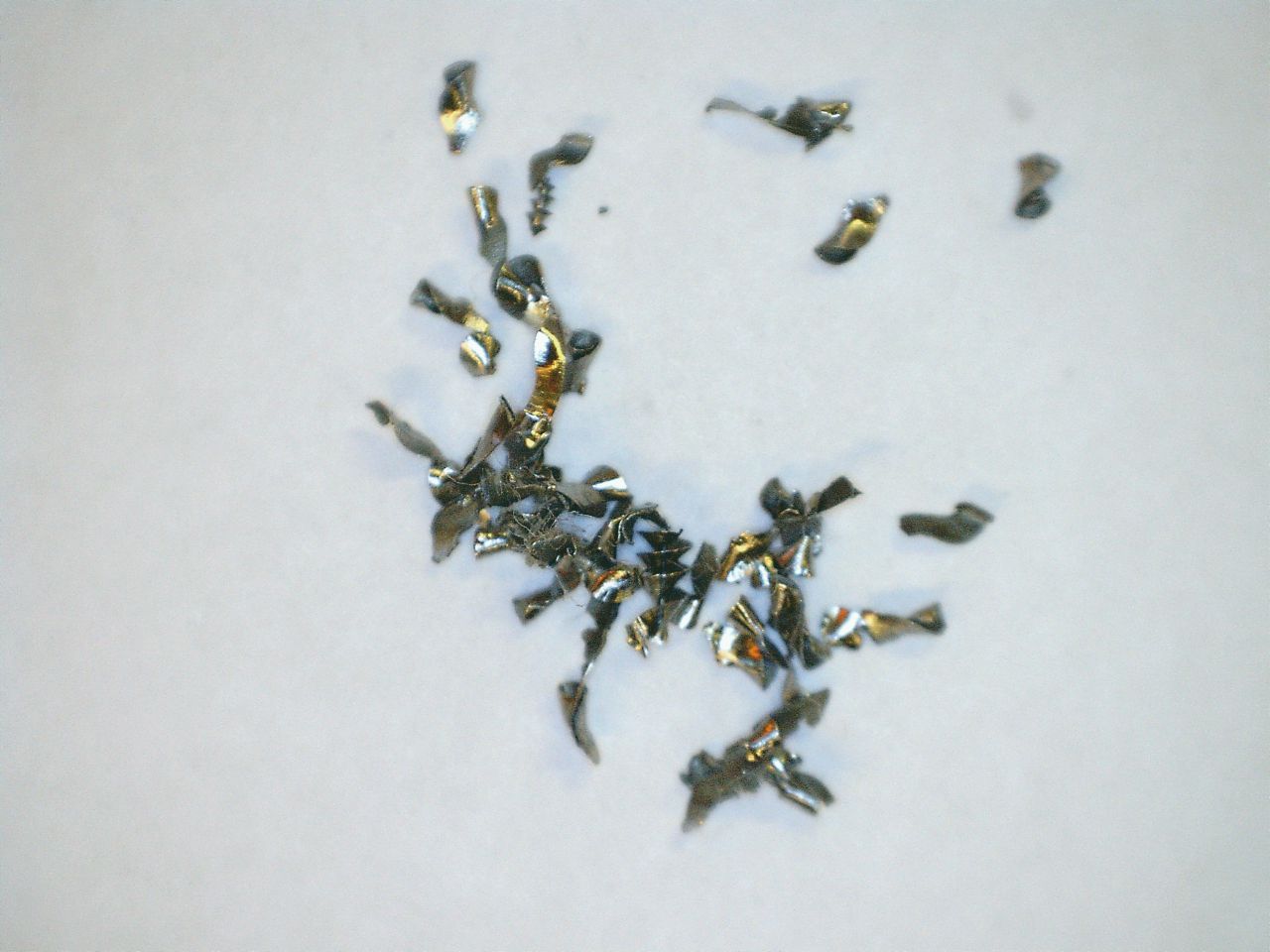

- Short chips
- Cleaner holes
- Fragmentation of the chips
- No chip coiled around the tool shank

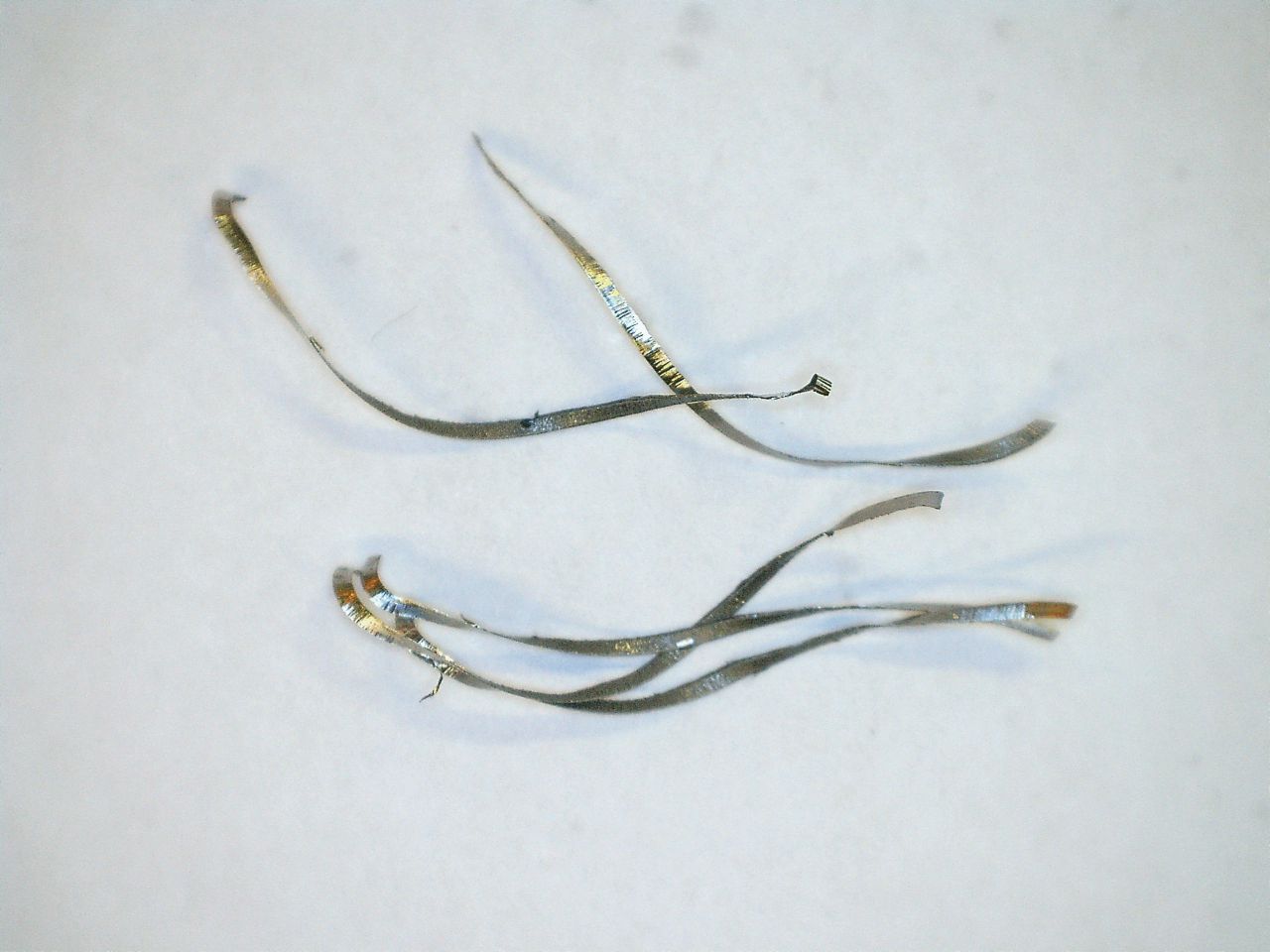

- Long chips
- Building of a cluster of chips around the tool shank

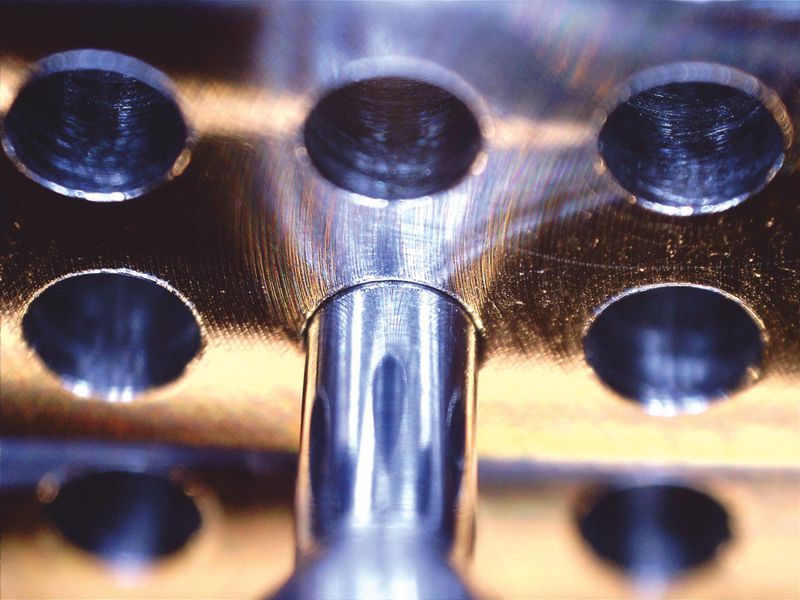

- Less conicity
- Cleaner holes
- Small burrs

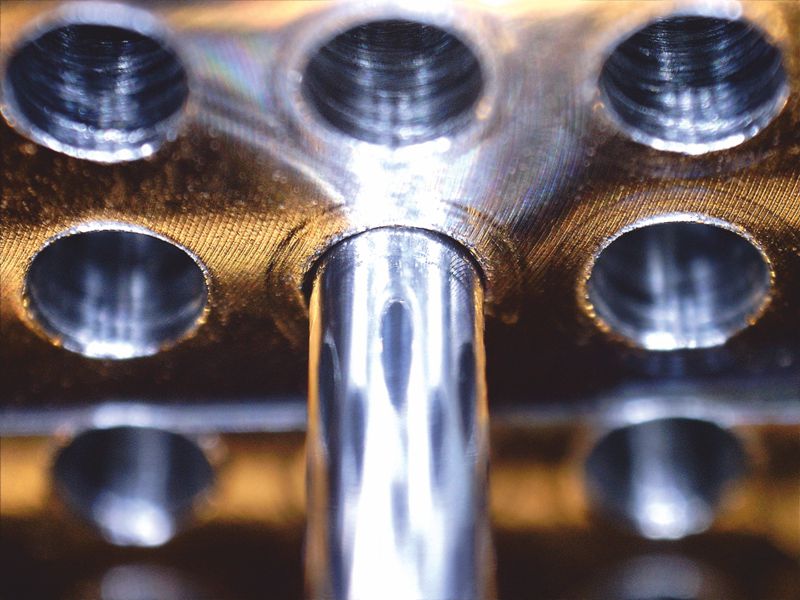

- More conicity
- More burrs
- Marks on holes
This drill is available in a large number of diameters, from 0.50 to 3.00 mm (> Standard Dimensions). Other dimensions can be produced on request.
